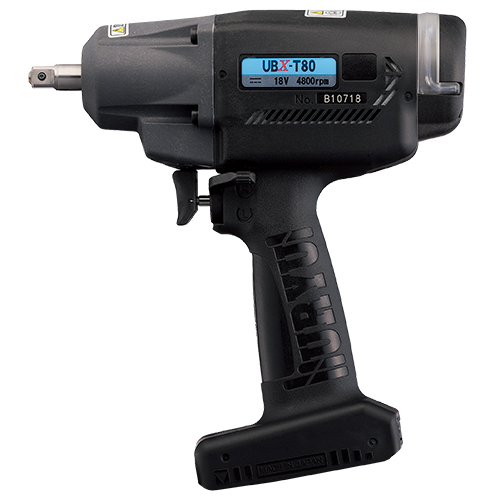

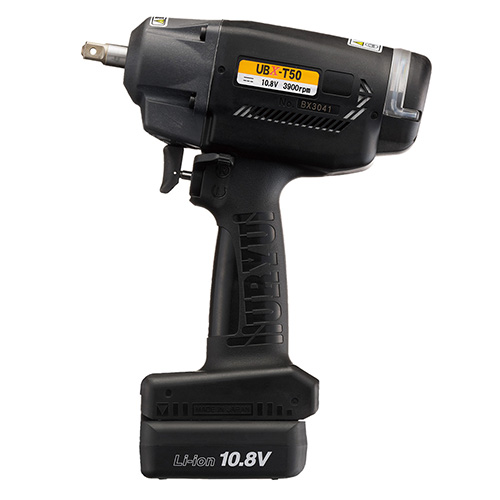

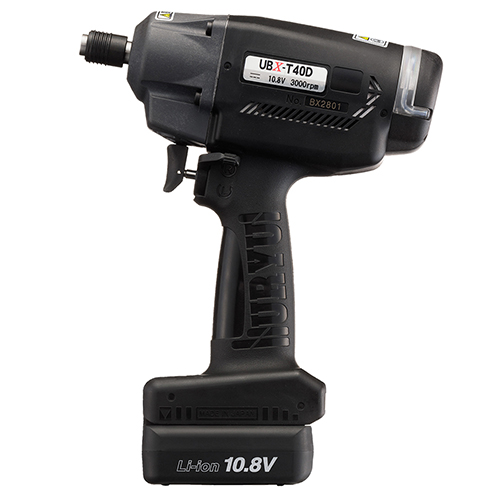

UBX-T Cordless Pulse Tool Model Chart

Tool Resources:

Operation Manual

breakdowns

Exploded/Outline Drawings

CAD Files

STEP Drawings

UBX-T RF8 Models

pokayoke configuration

UBX-T series tools with the RF8 option enable wireless communication upon successful shut-off of the tool when fastening.

This feature can be used to send the shut-off signal when used with the TW-800DR receiver (required). The receiver can be tied to a PLC or the optional UTM-1500 Fastener Counter for collecting fastening counts.

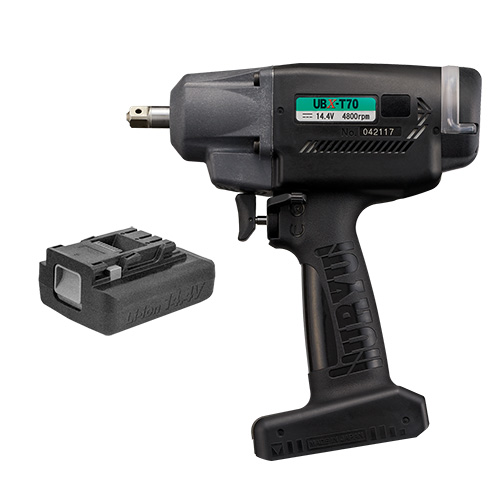

UBX-T batteries and battery charger

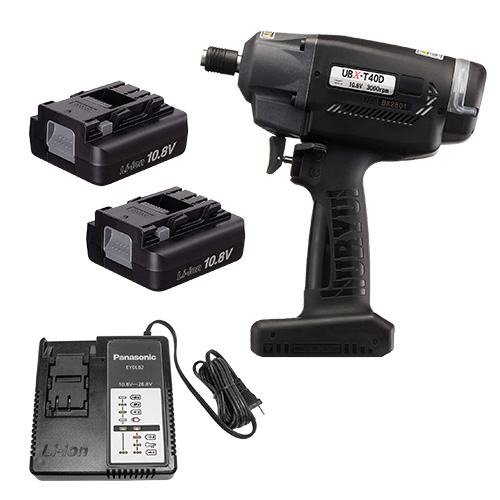

UBX-T Base model comes with no battery. Batteries are available separately or in tool/kit combinations. Kit includes: 1 tool, 2 batteries, and 1 battery charger.

Durable tool body jackets are designed to protect the tool and application surface and is not included in base model or kit.

Torque monitoring (tm) for quality & line control

For use with Non-Transducerized Tools that have the TM feature installed
Automatically set up pressure values
Communication & Line Control:
- PLC communication inputs (5)/outputs (8)
- Remote parameter switch selection
- Variable relays for interfacing with process
  equipment
- Optional network interfaces available
Programmable timers for detection of double hits, cross-threads, or premature trigger release
